Description
The OxyPro Vision Hyperbaric Oxygen Chamber offers a robust and comfortable environment for hyperbaric therapy. This hard shell, lying type chamber is made from stainless steel and aircraft-grade PC materials, ensuring durability and safety. It features a combo machine that includes an oxygen concentrator, air compressor, anion air purifier system, sterilization and cooling system, providing comprehensive therapy in one unit.

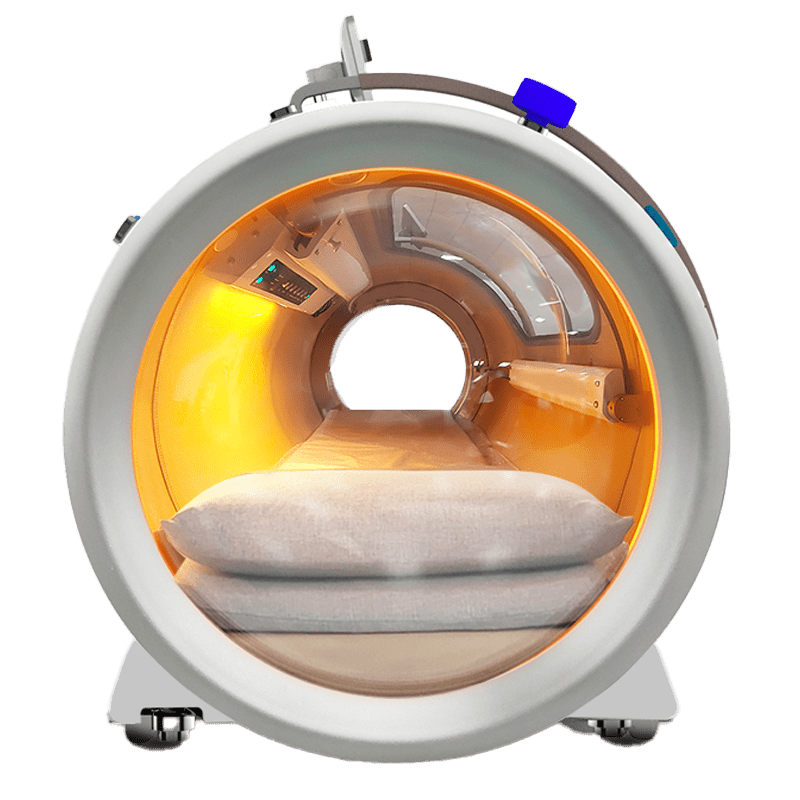

Large Transparent Windows
Double layered aircraft grade windows on both ends of the chamber provide ambient light, visibility and claustrophobia-free comfort.

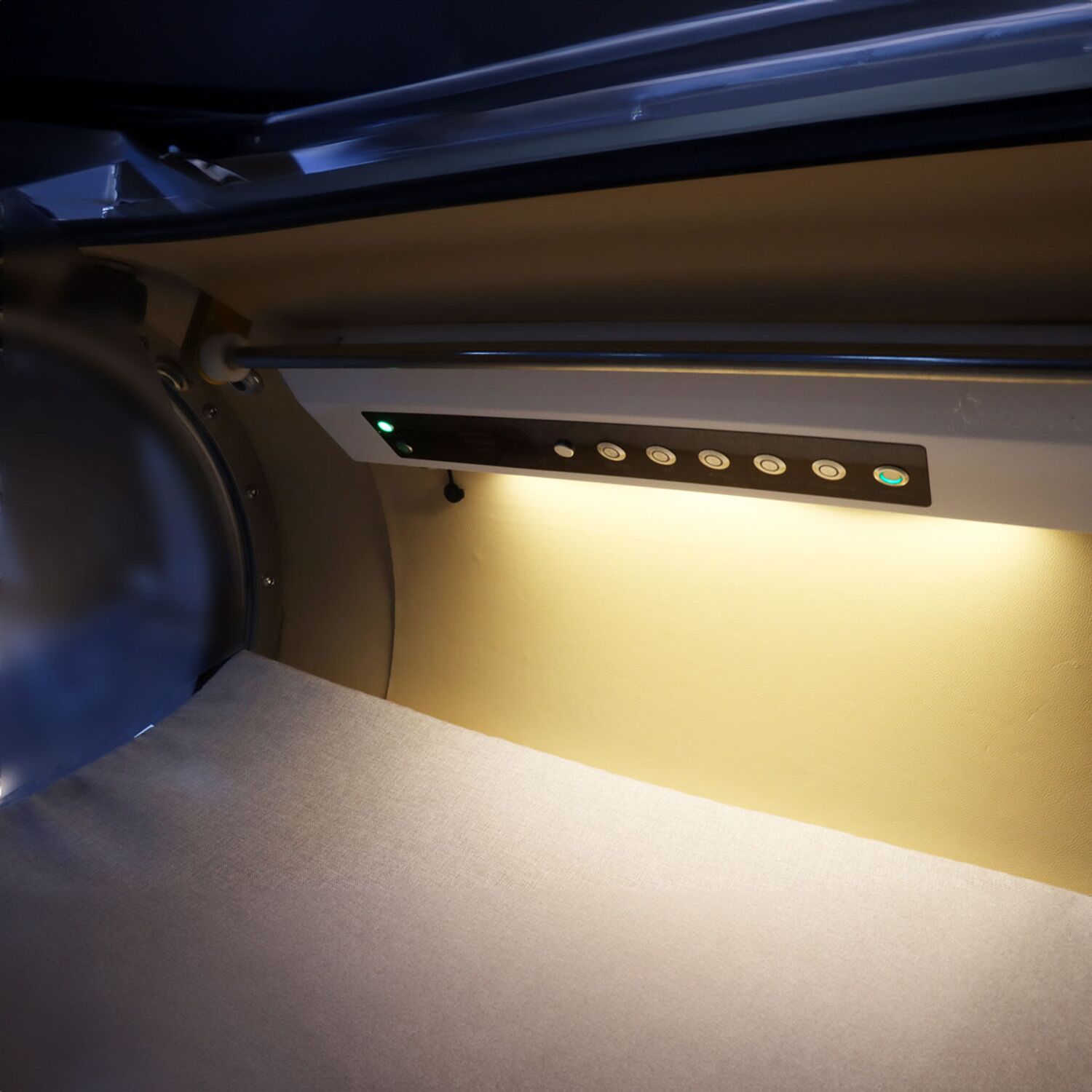

Internal Control Board
Single user internal operation of all functions including pressurization/depressurization, oxygen supply, lighting and cooling.

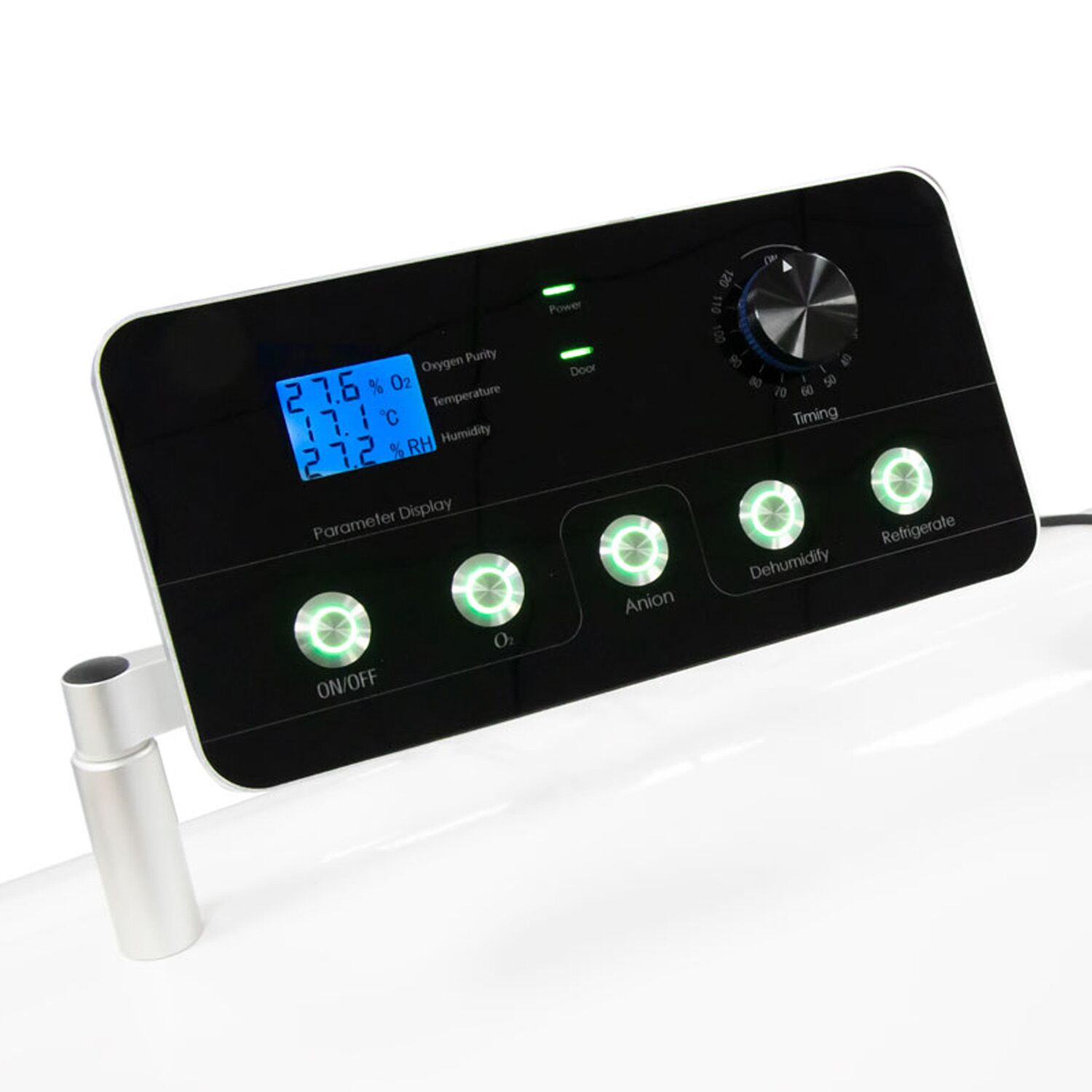

Digital Display Screens
Dual intelligent display screens (internal and external) show automatically controlled oxygen purity, temperature and humidity.
Reinforced Transparent Door
Aircraft-grade transparent door allows easy entry/exit and visibility with reinforced frame to prevent bending or warping.
Door Safety Sensor
Prevents operation of the unit until door is properly sealed, simplifying safe operations and avoiding damage to the system.
Communication System
High definition, noise-cancelling intercom system makes direct communication in chamber, clear and easy.
| Chamber Cabin | |
|---|---|
| Maximum Operating Pressure | 1.5 ATA / 2.0 ATA |
| Size (Diameter * Length) | 30” D x 89” L / 36” D x 89” L |
| Weight | 551 LBS / 772 LBS |
| Operating Unit | |
|---|---|
| Type | Combination machine includes Oxygen Concentrator, Air Compressor, Anion, Cooling |
| Size | 31″ x 16″ x 35″ |
| Weight | 198 LBS |
| Oxygen Flow | 10 L/min |
| Oxygen Purity | 90-97% |
| Air Flow | 85 L/min |
| Air Filter | Dual Carbon |
| Cooling Machine | X2 (Dehumidification + Refrigeration) |
Key Features:
- Robust Construction: Made from stainless steel and aircraft-grade PC for durability and safety. Reinforced door area for enhanced resistance.
- Adjustable Pressure: Pressure switch valve allows for customizable, adjustable settings of 1.2, 1.3, 1.4, 1.5, 1.6, 1.8 and 2.0 ATA.
- Oxygen Concentrator: Delivers 90-97% pure medical-grade oxygen.
- Smart Combo Multi-Function Unit: Includes an oxygen concentrator, air compressor, anion system, and dual cooling machines.
- LED Lighting: LED lighting inside for visibility and comfort.
- Sterilization System: Purify and sterilization system designed to combat viruses, including COVID-19.
- Quiet Operation: Extra quiet pressure relief valves.

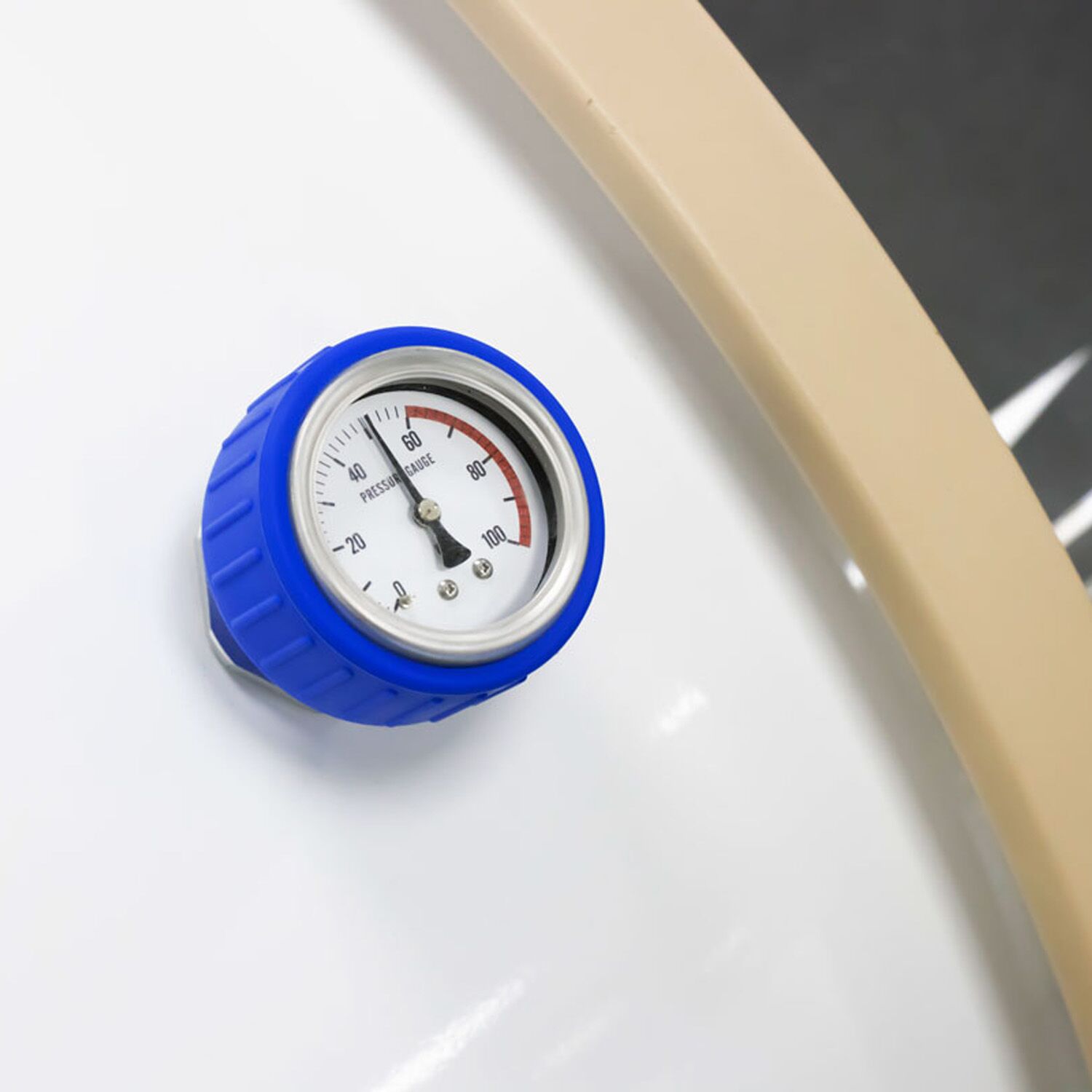

- Safety Features: Internal and external pressure gauges, pressure release controls, and a smart door safety sensor.
- Enhanced Comfort: Features large transparent windows, internal control board, and a dehumidifying and cooling system.
- Certifications: Manufactured with ISO9001, ISO14001, and ISO13485 certifications for quality and safety.
- Longevity: Units are designed to endure continuous usage with a lifespan of 25 to 30 years.
- Transparent View Window: Dual double-layered aviation grade windows on each end provide enhanced visibility, and reduced claustrophobia.
- Digital Data Display Screen: Shows data on oxygen purity, temperature, and humidity inside and outside the chamber.
- Internal Control Board: Allows users to operate all functions inside the chamber, including pressurization, oxygen supply, and temperature.
- Phone Communication System: High-definition communication system with noise cancelling makes communication simple and clear.
- Door Safety Sensor: Ensures operation is allowed only after the door is fully closed, enhancing safety.
- Wheels at Bottom: Easy to move the chamber when needed.
FAQs:
Q: Can I use the OxyPro Vision without assistance?
A: Yes, the chamber is designed for easy operation without the need for assistance.
Q: What is the difference between the OxyPro 3000 and OxyPro 3600 models?
A: The OxyPro 3000 has dimensions of 30″ D x 89″ L , while the OxyPro 3600 is 36″ D x 89″ L, providing more space for comfort.
Q: What is the recommended pressure for home use?
A: For most users, 1.3 or 1.4 ATA is suitable for home use, providing effective therapy with enhanced safety.
